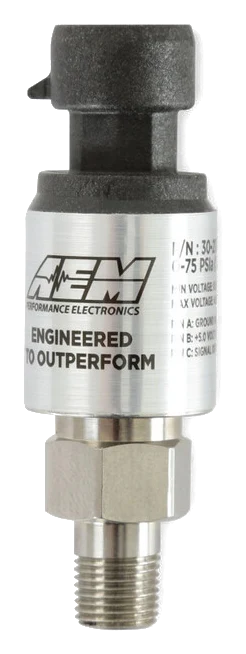

AEM MAP 5 bar Sensor Kit Specifications This MAP (Manifold Absolute Pressure) sensor can support an absolute pressure of 5 bars, equivalent to a boost pressure of 4 bars. It allows to measure the air pressure in the intake manifold, and transmit this info to the ECU, which will calculate the corresponding amount of fuel to inject. This ultra-precise sensor is particularly recommended for joint use with AEM EC Us. It is made of high quality stainless steel and has a 1/8" NPT thread (4 and 5 mm Dash adapters supplied, see photo). AEM MAP 5 bar Sensor Air pressure sensor (up to 5 bars) Ideal for an AEM ECU Material: high quality stainless steel Ultra-precise and quick readings Signal output : 0.5 to 4.5V linear Operating temperature range: -40 to + 105° C Thread : 1/8" NPT Supplied with two adapters for easy installation (Dash 4 and barb for 5 mm hose) AEM part no. : 30-2130-75 Technical Specifications Accuracy : +/- 0.5% from 0 to 5 bars Minimum / maximum operating temperature : -40° C to + 105° C Response time
