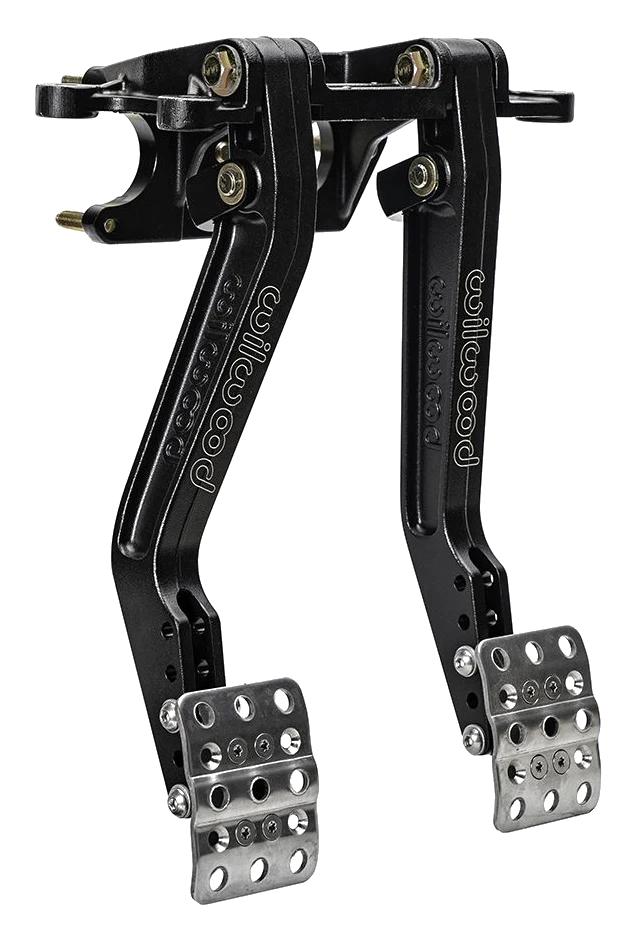

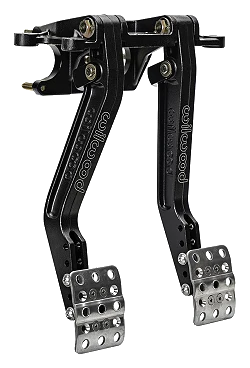

Wilwood 340-16833 Swing Mount Tandem Brake and Clutch Pedal - USA-WIL-340-16833 - Swing Mount Tandem Brake and Offset Clutch Pedal Adjustable ratio brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25: 1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. The clutch pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder, while the brake uses a 3.25 inch horizontal mount flange tandem master cylinder, available separately in a variety of styles and bore sizes. Pedal Type Material Aluminum Finish Black E-coat Pedal Description Mount Loc Swing Mount Facing Forward Balance Bar No Mount Length (in)   Pedal Ratio & Length Pedal 1 Ratio 5.5-6.25: 1 Pedal 2 Ratio 5.5-6.25: 1 Pedal 1 Length (in)   Pedal 2 Length (in)
