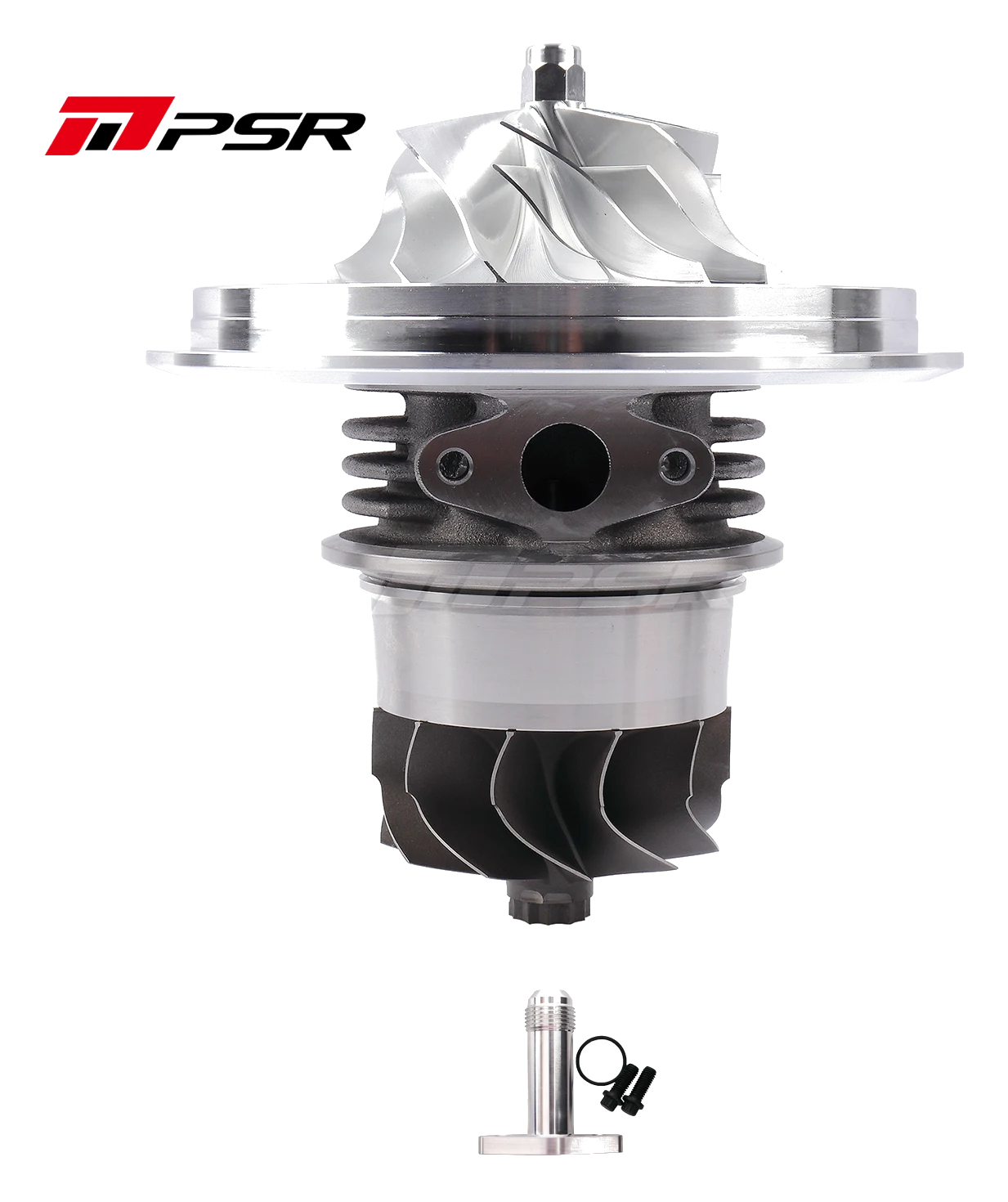

Supercore Pulsar PSR 7685E 1500HP Łożyska kulkowe
Wichtigste Daten
Model turbiny
7685E
Rodzaj łożysk
Kulkowe
Kurz gefasst

7685E Ball Bearing Turbo UP to 1500HP Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c 11 Blade Turbine Wheel T4 divided and V-Band In/out are available in turbine housing option Vband Flange ki...

Nicht sicher, ob es passt?

Gib uns den Motorcode oder die VIN — wir prüfen die Passform und antworten noch am selben Tag.

7685E Ball Bearing Turbo UP to 1500HP Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c 11 Blade Turbine Wheel T4 divided and V-Band In/out are available in turbine housing option Vband Flange kit for the exhaust housing included Max Engine Horsepower: 1500 Compressor Cover: W/O Compressor Housing Turbine Housing: W/O Turbine Housing Billet Compressor Wheel: 76x 102.4mm, 7+7 Blade Turbine Wheel: 85 x 89.5mm, 11 Blade Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion) Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet) The internal oil feed port is 0.9mm(An oil restrictor is not needed) Oil feed fitting: 1/8-27 NPSF Oil Drain: -12AN Important! Only fit for PSR compressor cover!
