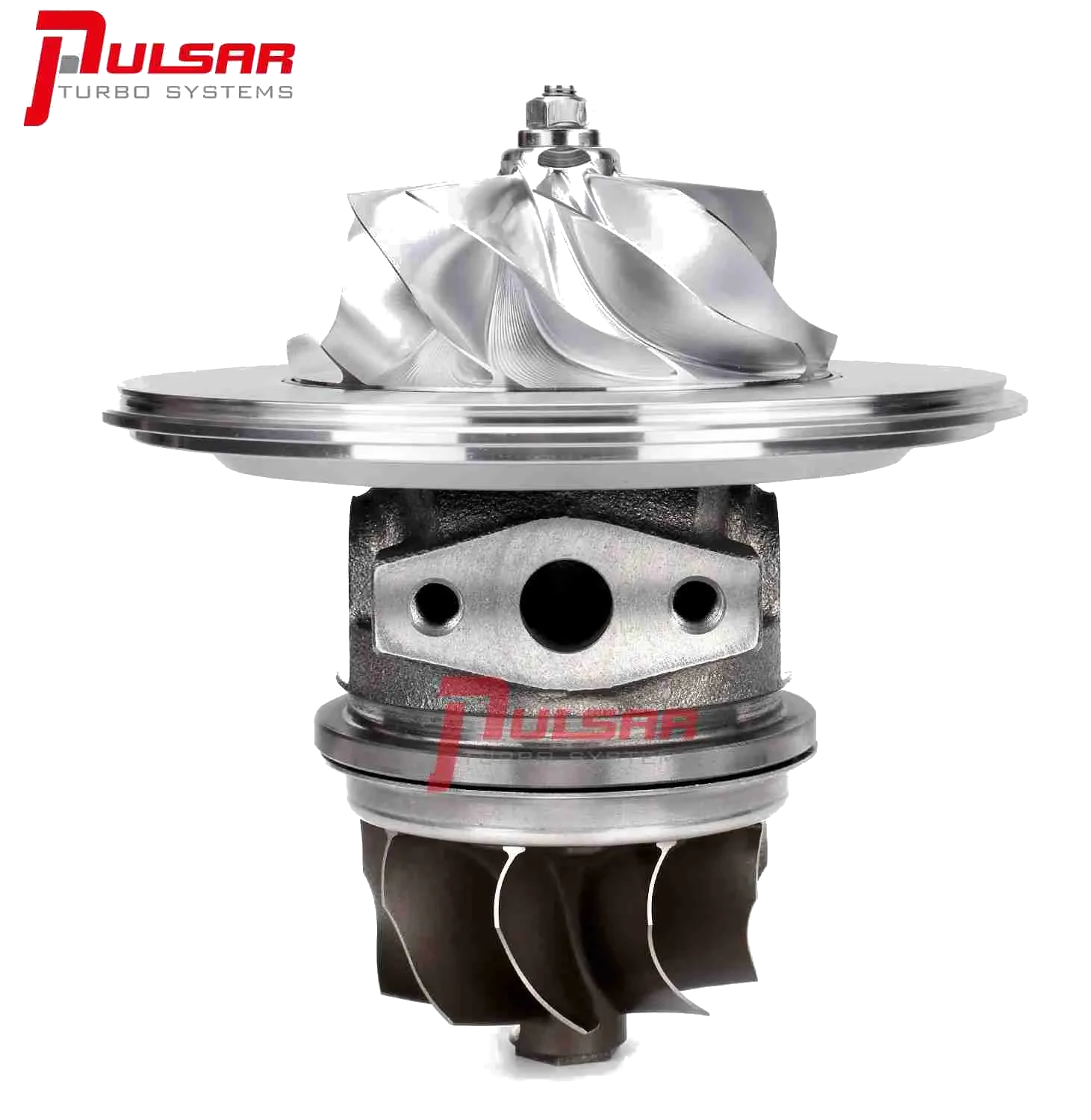

Supercore Pulsar PSR 3584 Gen2 Łożyska kulkowe
Données essentielles
Code moteur
PSR3584
Model turbiny
3584
Rodzaj łożysk
Kulkowe ceramiczne
En bref

PSR3584 GEN2 Dual Ball Bearing Turbocharger Dual Ceramic Ball Bearing System 10 Blade Gen 2 Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c Gen 2 9 Blade Turbine Wheel with “RS” blade profile design Gen 2 Cover Integrated with the Speed Sensor Port 0.83, 1.01 A/R dual v-band turbine housing, T...

Vous doutez de la compatibilité ?

Donnez-nous le code moteur ou le VIN — nous vérifions la compatibilité et répondons le jour même.

PSR3584 GEN2 Dual Ball Bearing Turbocharger Dual Ceramic Ball Bearing System 10 Blade Gen 2 Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c Gen 2 9 Blade Turbine Wheel with “RS” blade profile design Gen 2 Cover Integrated with the Speed Sensor Port 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, etc. turbine housings in option V-Band Flange kit(s) for the exhaust housing included Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP Compressor Housing: W/O Compressor Housing Turbine Housing: W/O Turbine Housing Compressor Wheel: 67*84mm Turbine Wheel: 68*62mm (“RS” blade profile) Compressor Inlet: 4.0 Hose Compressor Outlet: 2.5 Hose Turbine Inlet: T3, T4, or 2.5″ V-Band Turbine Outlet: 3″ V-Band (3.55″OD) Oil Feed: -4 AN connect to the Oil Restrictor Oil Drain: Std T3 Flange Water In/Outlet: M14*1.5 We highly recommended running water cooling for better durability.
